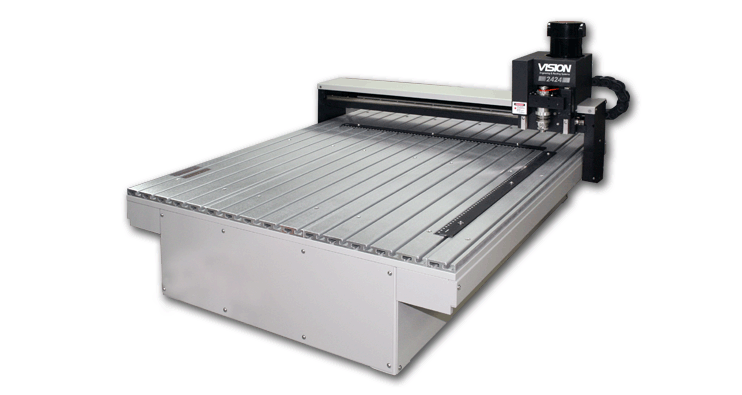

Vision 2424 24" x 24" Large Format Engraver

• Red laser pointer for easy set-ups • NEW Series 5 Controller w/ V-Touch pendant • Proximity Sensor (for automatic surface settings)

SKU: VE-2424S5

Manufacturer: Vision Engraving & Routing Systems

Call for pricing

The 2424 Engraver is perfect for light- to heavy-duty job applications in a large engraving area. Great for a variety of jobs such as large signage, high-volume production projects, industrial marking, and multiple plate jobs! The 2424 computerized engraving machine is also ideal for marking industrial items such as tools, cylinders, pipes, and gauges.

The 2424 Engraver:

24" x 24" Large work area
Aluminum T-slot table to accommodate various work-holding fixtures
Engraves items up to 1.875” thick (3.5” thick or more w/ custom risers)
Uses 11/64” or 1/4” top-loading spindle (collet optional)
Optional Automatic Raster™ Braille Inserter for automatic Braille bead insertion
A limited 2-year warranty

Applications: Sign making, Trophy & Plaques, Parts Marking, Badge Engraving, ADA Braille Signs, Wood Engraving, Plastic Engraving, Metal Engraving, Tag Engraving, Control Panels and more!

Offering the most affordable machines in their class, all of Vision's rotary engraving machines are made in the USA, built to be rugged, and backed by a superior customer support team.

Download Specification Sheet

More information on Vision's Website

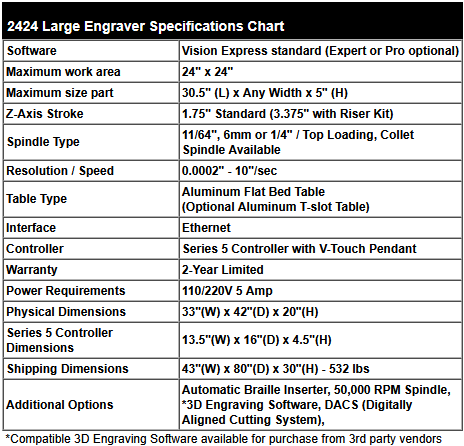

2424 Engraver Specifications
